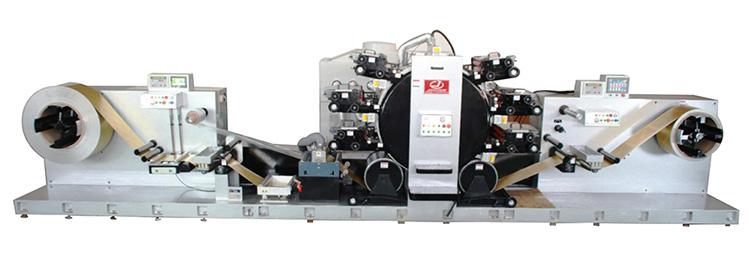

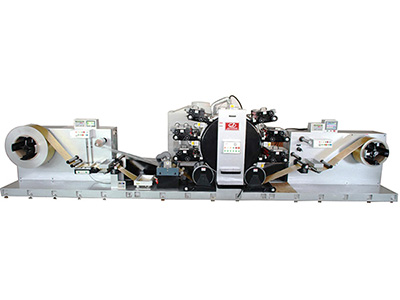

JX-6C460R+1 Flexographic Printing Press for Metal Printing

JIN XIANG’s metallic label, 6 color printing machine with a flexo plate is capable of printing on metal materials that are able to be rolled up, including aluminum, iron, laminated aluminum foil and stainless steel. This flexographic equipment not only prints on both sides of the substrate, but also carries out rewinding operations to improve production efficiency.

We offer this 6-color flexographic printing machine for printing on metallic labels, with the parameters below for reference only. For special requirements, we are able to alter equipment configuration, or create a new machine to meet required printing effect and capacity needs.

Technical specs
Varnish station 1 set
Gearing 1/8"
Max. Web width 460mm
Max. Print width 450mm
Max. unwind width 1600mm
Max. Rewind width 1600mm
Max. Print length 460mm
Min. Print length 190.5mm
Print speed 50m/min
Machine net weight 1500KG
Machine gross weight 2000KG
Power of main engine 15KW 380V
Motor power of ink dispenser (6pcs) 420W
UV dryer 37KW
Machine size (W×L×H) 2×11×2m
Equipment features
  • Tension control
    Tension control

    The tension controller automatically adjusts the tension according to the material thickness, allowing the printing machine to print on a variety of substrates with a thickness ranging between 0.05 and 0.5mm.

  • Servo technology
    Servo technology

    The ink feeding system in each printing station is controlled by a servo motor and CNC computer, allowing for an accurate ink feeding and feeding speed adjustment during the printing process.

  • Corona treater
    Corona treater

    An advanced corona treater efficiently removes dust and increases ink adhesion on the printing substrates, making this flexo printing machine applicable for printing on a variety of materials.

  • Web guide controller
    Web guide controller

    The web guide controller is equipped with web guide sensors to correct lateral deviation of the material during forward motion to ensure the printing accuracy.
