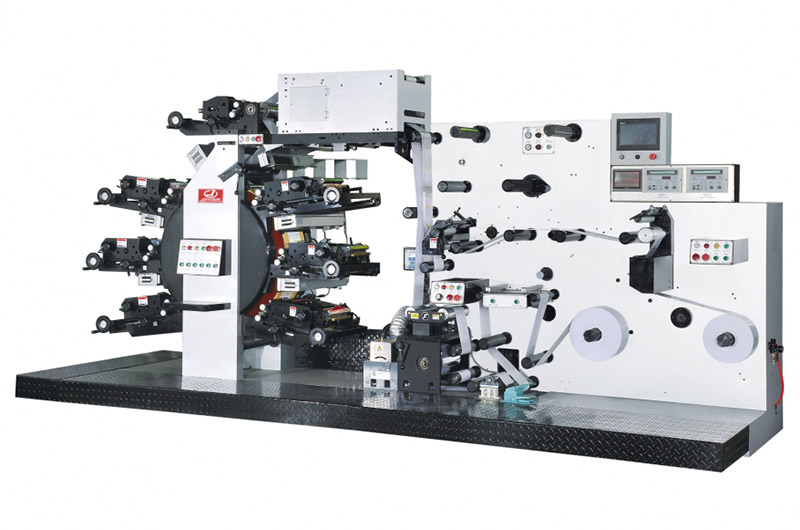

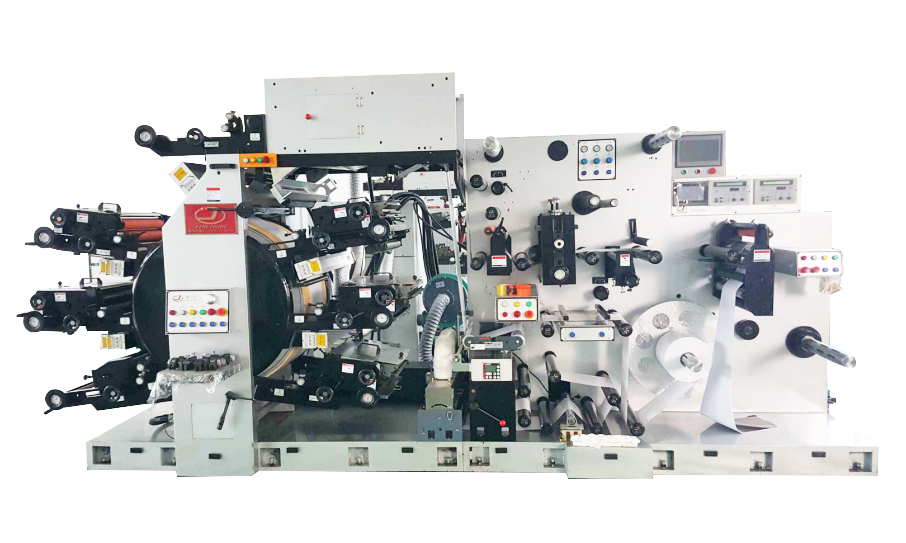

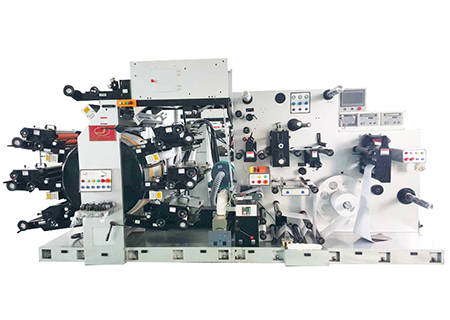

JX-460R6C+1 / JX-260R6C+1 Flexo Printing Press

JINXIANG’s JX-460R6C+1 / JX 260R6C+1 is intended for paper label printing, offering a clear 6 color printing on paper labels. It doesn’t matter what is being printed, whether it be the prices, bar codes, or a decorative pattern, both flexo printing presses easily fulfill customer needs. Stickers and labels feature a delicate appearance and a small size, leading to us developing these two printing machines with a maximum web width of 460 and 260mm respectively.

The following table outlines the machine parameters for both machines. We also offer customized equipment to meet customer needs for printing effect and capacity.

Technical specs
Model JX-6C460R+1 JX-6C260R
Varnish station 1 set 1 set
Gearing 1/8" 1/8"
Max. Web width 460mm 260mm
Max. Print width 450mm 250mm
Max. unwind width 800mm 800mm
Max. Rewind width 800mm 800mm
Max. Print length 460mm 460mm
Min. Print length 190.5mm 190.5mm
Print speed 100m/min 100m/min
Machine net weight 10000KG 7500KG
Machine gross weight 11000KG 8500KG
Power of main engine 11KW 380V 7.5KW 380V
Motor power of ink dispenser (6pcs) 420W 420W
UV dryer 30KW 30KW
Machine size (W×L×H) 5.8×1.4×2.2M 5.8×1.1×2.2M
Standard configuration
  • Printing station (6 sets)
  • Tension controller (2 sets)
  • Adhesion layer and backing printing unit (1 set)
  • Plate cylinder (6 sets, optional size)
  • UV (7 sets)
  • UV curing system(7 sets)
  • Trimming unit (1 set)
  • Tools (1 set)
  • Printing plate mounter (1 set)
  • Flexo plate proofer (1 set)
  • Splicing table (1 set)
  • Varnish unit (1 set)
  • Reverse printing unit (1 set)
  • Corona treatment unit (1 set)
  • Unwinder and rewinder (1 set respectively)
  • Protective layer laminator (1 set)
Optional equipment
  • Cold foil unit
  • Gravure printing unit
  • Round screen printing unit
  • Slitting and sheeting system
  • Static observation system
  • Cooling system
  • Electrostatic eliminator
  • Lamination unit and cross over unit for multi layer label production
Standard features
  • Tension control
    Tension control

    The tension controller automatically adjusts the tension based on the material thickness. This allows the press to handle printing on different substrates, with a thickness ranging between 0.05 and 0.5mm.

  • Servo technology
    Servo technology

    The ink feeding system in each printing station is controlled by a servo motor and CNC computer, ensuring an accurate ink feeding and feeding speed adjustment during the printing process.

  • Corona treater
    Corona treater

    An advanced corona treater efficiently removes dust and increases the ink adhesion on printing substrates, making our flexo printing machines applicable to printing on a variety of materials.

  • Web guide controller
    Web guide controller

    The web guide controller is equipped with web guider sensors to correct the material lateral deviation in its forward motion to ensure the printing accuracy.
