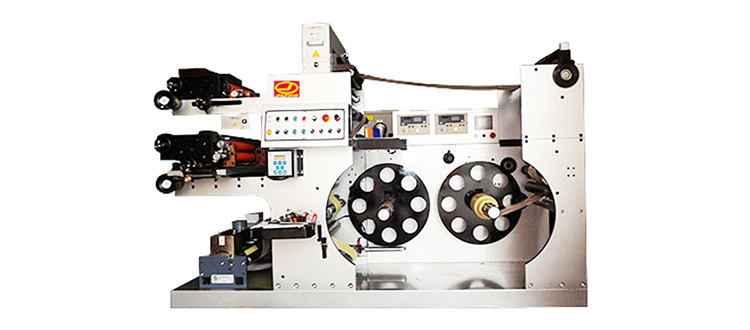

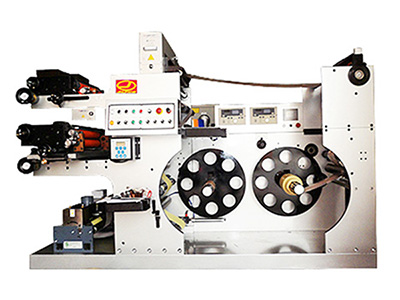

JX-260R2C Flexo Printing Press

JIN XAING’s JX-260R2C foil label printing machine is ideal for printing on flexible materials, including clothing labels, food packaging, tickets, and more.

This foil label printing machine with a flexo plate performs 2 color printing with a web width of 260mm. Detailed information is shown below for customer reference, and for special requirements, we can customize existing equipment parameters or customize completely new equipment to the required printing effect and output.

Technical specs
Model JX-260R2C
Varnish station 1 set
Gearing 1/8"
Max. Web width 260mm
Max. Print width 250mm
Max. unwind width 800mm
Max. Rewind width 800mm
Max. Print length 460mm
Min. Print length 190.5mm
Print speed 100m/min
Machine net weight 3000KG
Machine gross weight 3500KG
Power of main engine 3KW 380V
Motor power of ink dispenser (6pcs) 420W
UV dryer 6KW
Machine size (W×L×H) 1.2×3.0×1.6m
Standard configuration
6 color flexo printing machine
  • Printing station (6 sets)
  • Plate cylinder (6 sets, optional size)
  • UV curing system(10 sets)
  • Tension controller (2 sets)
  • Trimming unit (1 set)
  • Tools (1 set)
  • Printing plate mounter (1 set)
  • Flexo plate proofer (1 set)
  • Splicing table (1 set)
  • Varnish unit (1 set)
  • Corona treatment unit (1 set)
  • Silicone removing and reverse printing unit (1 set)
  • Rotary cross cut unit (1 set)
  • Unwinder and rewinder (1 set respectively)
  • Protective layer laminator (1 set)
2 color flexo printing machine
  • Printing station (2 sets)
  • Plate cylinder (2 sets, optional size)
  • UV curing system(7 sets)
  • Tension controller (2 sets)
  • Trimming unit (1 set)
  • Tools (1 sets)
  • Printing plate mounter (1 set)
  • Flexo plate proofer (1 set)
  • Splicing table (1 set)
  • Varnish unit (1 set)
  • Corona treatment unit (1 set)
  • Silicone removing and reverse printing unit (1 set)
  • Rotary cross cut unit (1 set)
  • Unwinder and rewinder (1 set respectively)
  • Protective layer laminator (1 set)
Optional equipment
  • Cold foil unit
  • Gravure printing unit
  • Round screen printing unit
  • Slitting and sheeting system
  • Static observation system
  • Cooling system
  • Electrostatic eliminator
  • Lamination unit and cross over unit for multi layer label production
Standard features
  • Tension control
    Tension control

    The tension controller automatically adjusts the tension based on the material thickness. This allows the printing machine to handle a variety of substrates with a thickness ranging between 0.05mm and 0.5mm.

  • Servo technology
    Servo technology

    The ink feeding system in each printing station is controlled by a servo motor and CNC computer, offering an accurate ink feeding and feeding speed adjustment during the printing process.

  • Corona treater
    Corona treater

    An advanced corona treatment efficiently removes dust and increases ink adhesion on printing substrates, making this flexo printing machine applicable to a variety of materials.

  • Web guide controller
    Web guide controller

    The web guide controller is equipped with web guide sensors to correct the later deviation of the material during forward motion to ensure the printing accuracy.
