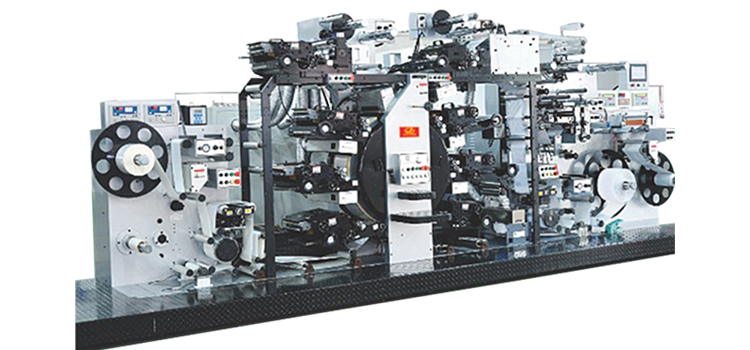

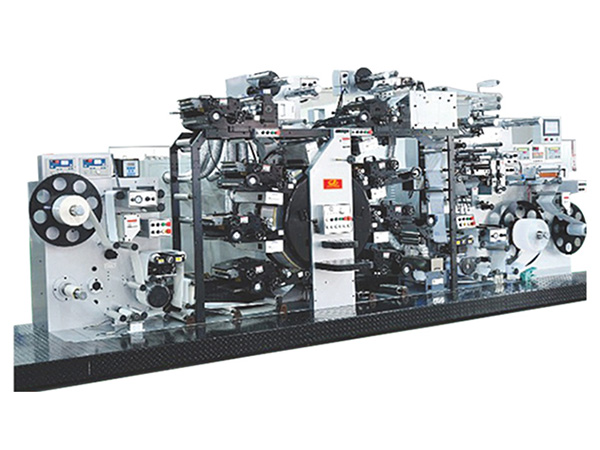

JX-260R7C+1 Flexo Printing Press

JIN XIANG’s JX-260R7C+1 foil label letterpress machine is ideal for printing on labels including stickers, laminated timber, BOPP film, shrink film, and petrochemical environmentally friendly material. The printed label features a bright color, ensuring the packaging has an appealing decorative effect.

We specially designed this 7 color foil label letterpress machine for printing foil labels in a variety of patterns. The following are the detailed parameters for customers to use as a reference point. For special requirements, we offer equipment configuration and new equipment customization services to meet customer needs for printing effects and capacity.

Technical specs
Model JX-260R7C+1
Varnish station 1 set
Gearing 1/8"
Max. Web width 260mm
Max. Print width 250mm
Max. unwind width 800mm
Max. Rewind width 800mm
Max. Print length 460mm
Min. Print length 190.5mm
Print speed 100m/min
Machine net weight 7800KG
Machine gross weight 8600KG
Power of main engine 7.5kW, 380V
Motor power of ink dispenser (6pcs) 420W
UV dryer 20kW
Machine size (W×L×H) 1.2×7.8×2.2m
Standard configuration
  • Printing station (6 sets)
  • Plate cylinder (6 sets, optional size)
  • UV curing system(8 sets)
  • Tension controller (2 sets)
  • Trimming unit (1 set)
  • Tools (1 set)
  • Printing plate mounter (2 sets)
  • Flexo plate proofer(2 sets)
  • Splicing table (2 sets)
  • Varnish unit (1 set)
  • Corona treatment unit (2 sets)
  • Adhesion layer and reverse printing unit (1 sets)
  • Rotary cross cut unit (1 sets)
  • Unwinder(2 sets)
  • Rewinder (1 sets)
  • Protective film laminator(1 sets)
Optional equipment
  • Cold foil unit
  • Gravure printing unit
  • Round screen printing unit
  • Slitting and sheeting system
  • Static observation system
  • Cooling system
  • Electrostatic eliminator
  • Lamination unit and cross over unit for multi layer label production
Standard features
  • Tension control
    Tension control

    The tension controller automatically adjusts the tension based on the thickness of the material. This allows the printing machine to handle a variety of printing substrates with a thickness ranging between 0.05mm and 0.5mm.

  • Servo technology
    Servo technology

    The ink feeding system in each printing station is controlled by a servo motor and CNC computer, making it possible to accurately adjust the ink feeding amount and speed in the printing process.

  • Corona treater
    Corona treater

    An advanced corona treater helps to efficiently remove dust and increase ink adhesion on printing substrates, making our flexo printing machines applicable for printing on a variety of materials.

  • Web guide controller
    Web guide controller

    The web guide controller is equipped with web guider sensors to correct the lateral deviation of the material during forward movement to ensure the printing accuracy.
