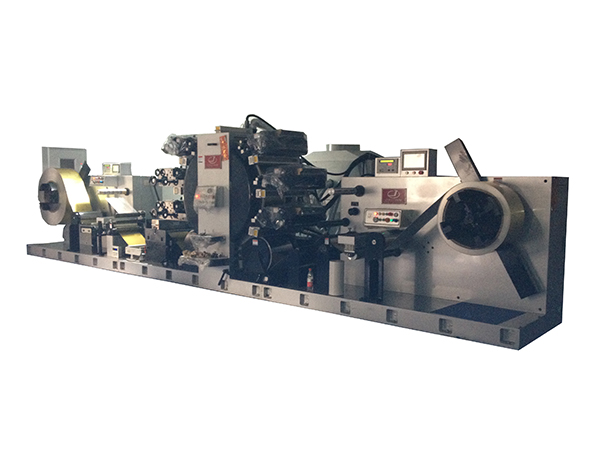

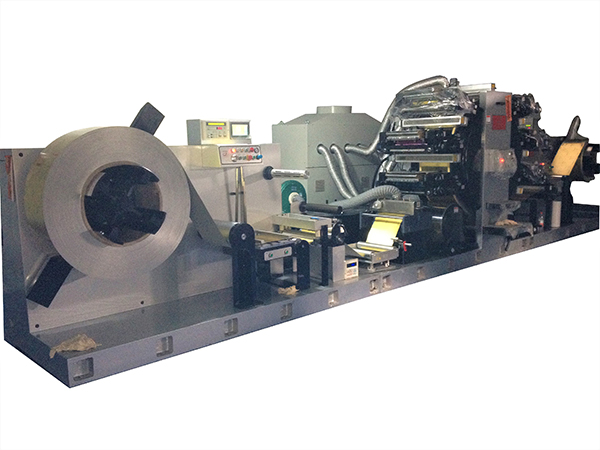

JX-4C460R+1 Flexographic Printing Press for Metal Printing

Jin Xiang’s metallic label printing machine with a flexo plate is capable of printing on any rolled up metal material, including aluminum, iron, and stainless steel. This flexographic machine not only performance printing on both sides of the substrates, but also features an excellent production efficiency.

We specially designed this 4-color flexographic machine for printing on metallic labels. The following detailed parameters are for reference only, and we are able to change equipment configurations or produce brand new equipment to meet customer requirements for printing effects and capacity.

Technical specs
Model 4 Color Flexographic Printing Press, JX-4C460
Varnish station 1 set
Gearing 1/8"
Max. Web width 460mm
Max. Print width 450mm
Max. unwind width 1600mm
Max. Rewind width 1600mm
Max. Print length 460mm
Min. Print length 190.5mm
Print speed 50m/min
Machine net weight 1500kg
Machine gross weight 2000kg
Power of main engine 15kW, 380V
Motor power of ink dispenser (6pcs) 420W
UV dryer 37kW
Machine size (W×L×H) 2×11×2m
Standard configuration
  • Printing station (4 sets)
  • Plate cylinder (5 sets, optional size)
  • UV curing system(7 sets)
  • Tension controller (2 sets)
  • Tools (1 sets)
  • Printing plate mounter (1 sets)
  • Flexo plate proofer (1 sets)
  • Splicing table (1 sets)
  • Varnish unit (1 sets)
  • Corona treatment unit (1 sets)
  • Unwinder and rewinder (1 set respectively)
  • Protective film laminator (1 sets)
Optional equipment
  • Cold foil unit
  • Gravure printing unit
  • Round screen printing unit
  • Slitting and sheeting system
  • Static observation system
  • Cooling system
  • Electrostatic eliminator
  • Lamination unit and cross over unit for multi layer label production
Standard features
  • Tension control
    Tension control

    The tension controller automatically adjusts the tension based on the material thickness. This allows the printing machine to handle printing on a variety of substrates with a thickness ranging between 0.05mm and 0.5mm.

  • Servo technology
    Servo technology

    The ink feeding system in each printing station is controlled by a servo motor and CNC computer, ensuring an accurate ink feeding and feeding speed adjustment during the printing process.

  • Corona treater
    Corona treater

    An advanced corona treater efficiently removes dust and increases ink adhesion on the printing substrates, making this machine applicable to printing on a variety of materials.

  • Web guide controller
    Web guide controller

    The web guide controller is equipped with web guider sensors to correct material later deviation in its forward motion, thus ensuring a printing accuracy.
