JX-260R8C+1

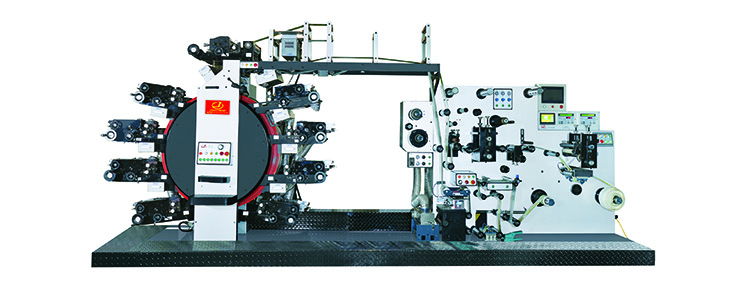

JX-260R8C+1 Flexo Printing Press

JIN XIANG’s JX-260R8C+1 film printing machine with a flexo plate is used to print on a variety of films, including plastic films ( PET, BOPP film), metallic film, and more. This film printing machine with a flexo plate integrates printing, die cutting and varnishing in a single pass, saving customer money with no need to purchase additional, relevant post processing equipment, and thus, features a high investment return.

This 8 color flexo printing machine features an available web width of 260mm,, making it ideal for film printing. The table below shows the parameters for this particular printing machine for reference, and we offer equipment customization and new equipment production to meet customer requirements for printing effects and capacity.

Technical specs
Model JX-260R8C+1
Varnish station 1sets
Gearing 1/8"
Max. Web width 260mm
Max. Print width 250mm
Max. unwind width 800mm
Max. Rewind width 800mm
Max. Print length 460mm
Min. Print length 190.5mm
Print speed 100m/min
Machine net weight 8000KG
Machine gross weight 9000KG
Power of main engine 11KW 380V
Motor power of ink dispenser (6pcs) 420W
UV dryer 24KW
Machine size (W×L×H) 1.2×6.8×2.8m
Standard configuration
  • Printing station (8 sets)
  • Plate cylinder (6 sets, optional size)
  • UV dryer (9 sets)
  • Trimming unit (1 set)
  • Tools (1 set)
  • Printing plate mounter (1 sets)
  • Flexo plate proofer (1 set)
  • Splicing table (1 set)
  • Varnish unit (1 set)
  • Reverse printing unit (1 set)
  • Corona treatment unit (1 set)
  • Adhesion layer and reverse printing unit (1 set)
  • Rotary cross cut unit (1 set)
  • Unwinder and rewinder (1 set respectively)
  • Protective layer laminator (1 set)
Optional equipment
  • Cold foil unit
  • Gravure printing unit
  • Round screen printing unit
  • Slitting and sheeting system
  • Static observation system
  • Cooling system
  • Electrostatic eliminator
  • Lamination unit and cross over unit for multi layer label production
Standard features
  • Tension control
    Tension control

    The tension controller automatically adjusts the tension based on the material thickness. This allows the printing machine to handle a variety of substrates with a thickness ranging between 0.05mm and 0.5mm.

  • Servo technology
    Servo technology

    The ink feeding system in each printing station is controlled by a servo motor and CNC computer, offering an accurate ink feeding and feeding speed adjustment during the printing process.

  • Corona treater
    Corona treater

    An advanced corona treatment efficiently removes dust and increases ink adhesion on printing substrates, making this flexo printing machine applicable to a variety of materials.

  • Web guide controller
    Web guide controller

    The web guide controller is equipped with web guide sensors to correct the later deviation of the material during forward motion to ensure the printing accuracy.
