JX-260R1C

JX-260R1C Flexo Printing Press

JIN XIANG’s JX-260R1C cellophane label letterpress machine offers printing on cellophane labels such as tape, self-adhesive labels, daily use chemical labels, food labels, electronic labels, bar code labels and more for informative packaging purposes.

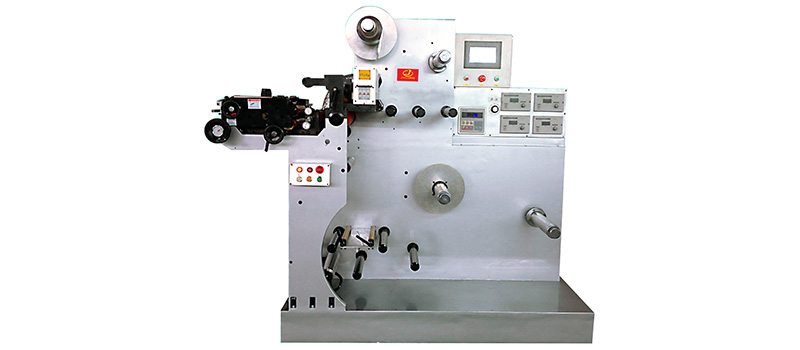

The following shows a single-color letterpress machine we customized for our customers with a web width of 260mm, making it ideal for printing cellophane labels. We will change equipment configurations or customize new equipment to meet customer requirements for printing effects and capacity.

Technical specs
Model JX-260R1C
Gearing 1/8"
Max. Web width 260mm
Max. Print width 250mm
Max. unwind width 800mm
Max. Rewind width 800mm
Max. Print length 650mm
Min. Print length 190.5mm
Print speed 100m/min
Machine net weight 1500KG
Machine gross weight 2000KG
Power of main engine 2KW 380V
Motor power of ink dispenser (6pcs) 420W
UV dryer 5KW
Machine size (W×L×H) 1.2×2.5×1.6m
Standard configuration
  • Printing station (1 set)
  • Plate cylinder (1 set, optional size)
  • UV curing system(1 set)
  • Tools (1 set)
  • Printing plate mounter (1 set)
  • Flexo plate proofer (1 set)
  • Splicing table (1 sets)
  • Corona treatment unit (1 set)
  • Unwinder and rewinder (1 set respectively)
  • Protective layer laminator (1 set)
Optional equipment
  • Cold foil unit
  • Gravure printing unit
  • Round screen printing unit
  • Slitting and sheeting system
  • Static observation system
  • Cooling system
  • Electrostatic eliminator
  • Lamination unit and cross over unit for multi layer label production
Standard features
  • Tension control
    Tension control

    The tension controller automatically adjusts the tension based on the material thickness. This allows the printing machine to handle a variety of substrates with a thickness ranging between 0.05mm and 0.5mm.

  • Servo technology
    Servo technology

    The ink feeding system in each printing station is controlled by a servo motor and CNC computer, offering an accurate ink feeding and feeding speed adjustment during the printing process.

  • Corona treater
    Corona treater

    An advanced corona treatment efficiently removes dust and increases ink adhesion on printing substrates, making this flexo printing machine applicable to a variety of materials.

  • Web guide controller
    Web guide controller

    The web guide controller is equipped with web guide sensors to correct the later deviation of the material during forward motion to ensure the printing accuracy.
